How to use the diver adjuster

If your watch’s metallic band has the Diver Adjuster function, the length of the band can be easily adjusted.
It is very useful when you wear the watch over a wet suit or winter clothing.

1. Lift up the flap approximately 90°until it stands upright, and then press the flap down further approximately 20°and lightly hold it.

When doing so, take care not to push the flap forcibly. Although you may feel slight resistance, doing this requires only a light force.



Flap

20°

90°

2. Lightly pull the band on the 6 o’clock side of the watch along the curved line of the band to pull out the slider.

Doing this requires only a light force. Take care not to pull the band forcibly.

The slider can be pulled out approximately 30 mm. Take care not to pull it out more than this limit.



Band on the 6 o’clock side of the watch

3. While pressing the push button, lift up the clasp to release the buckle, and place the watch on your wrist.



Clasp

Push button

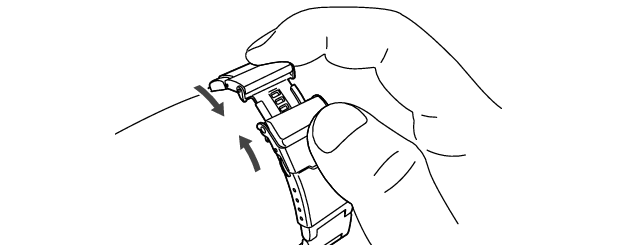

4. Close the clasp (4-1) first and then, the flap (4-2).



Flap
(4-2)

Clasp
(4-1)

5. Hold both sides of the band to adjust the length of the slider until it fits snugly around your wrist.
